FARO Tracer Laser Projectors
Unleash the Full Potential of FARO Tracer Laser Projectors
Manufacturing
Save time and money by ditching bulky physical templates! FARO Tracer Laser Projectors - the ultimate solution for efficient and error-free manufacturing.
These cutting-edge devices project laser outlines onto 3D surfaces or objects, helping operators to effortlessly sequence work and position components with remarkable precision. With Tracer Laser Projectors, you can easily position and verify part placement, guide composite ply layup, and visually verify and mask paint.
Revolutionise your production process and say goodbye to wasted resources and costly rework.
Construction
Say goodbye to cumbersome and error-prone physical templates and shop drawings. Our laser projectors directly project the original CAD or model onto building materials, guaranteeing precise positioning, assembly, and verification.
For over 20 years, manufacturers have trusted our tools, and now we're bringing these technical advantages to the construction and prefabrication industries.
Experience the future of building construction with FARO Tracer Laser Projectors.
Achieve Excellence
No matter the challenge you face at work, our cutting-edge 3D laser projection technology is the key to saving time, reducing costs, and eliminating frustration. By delivering critical information promptly, our solution empowers you to make smarter decisions more efficiently.
With a significant decrease in human errors and a significant increase in quality optimisation, your organisation can drastically cut expenses and boost revenue generation effortlessly.
Maximize Efficiency, Minimize Expenses, and Accelerate Growth.
The All-in-One Projection and Advanced Verification Tool
Business Value of Tracer Laser Projectors
Precision & Confidence
Experience the power of Tracer Laser Projectors in your workflow for enhanced precision and confidence. Whether in a prefab factory or out in the field, these projectors will revolutionise your operations.
Say goodbye to operator variations and hello to improved quality with accurate guidance and standardised workflows.
Build with confidence like never before.
Reduce Costs & Waste
Improve accuracy, save money, and promote environmental sustainability with laser outlines.
By eliminating the need for physical templates and minimising manufacturing errors, you can minimise scrap and rework, creating a more efficient and eco-friendly project.
Save Time & Increase Efficiency
Reduce labour costs and effort by replacing physical templates. The precise laser outlines require far less manual work, resulting in substantial cost savings.
Boost your throughput by reducing the time needed for setup, layout, and assembly. Streamline your processes and achieve faster project completion.
The efficiencies gained from this innovative technology can save you weeks of work.
Increase Productivity & Profitability
By eliminating assembly errors and ensuring precise alignment, you complete projects more efficiently, saving you time and reducing the risk of costly mistakes and rework.
Additionally, our technology allows for fast and seamless implementation of engineering change orders, accelerating your production process and boosting revenue generation.
Experience the power of precision and propel your business growth to new heights.
FARO Tracer Laser Projectors Performance
TracerSI Laser Projector
With exceptional scanning abilities and unmatched precision throughout its projection area, this advanced technology sets a new standard for laser-guided assembly.
Experience high-contrast imaging, reliable projection, and user-friendly BuildIT Projector Software all in one powerful solution. Get ready to elevate your assembly processes with this first-of-its-kind system.

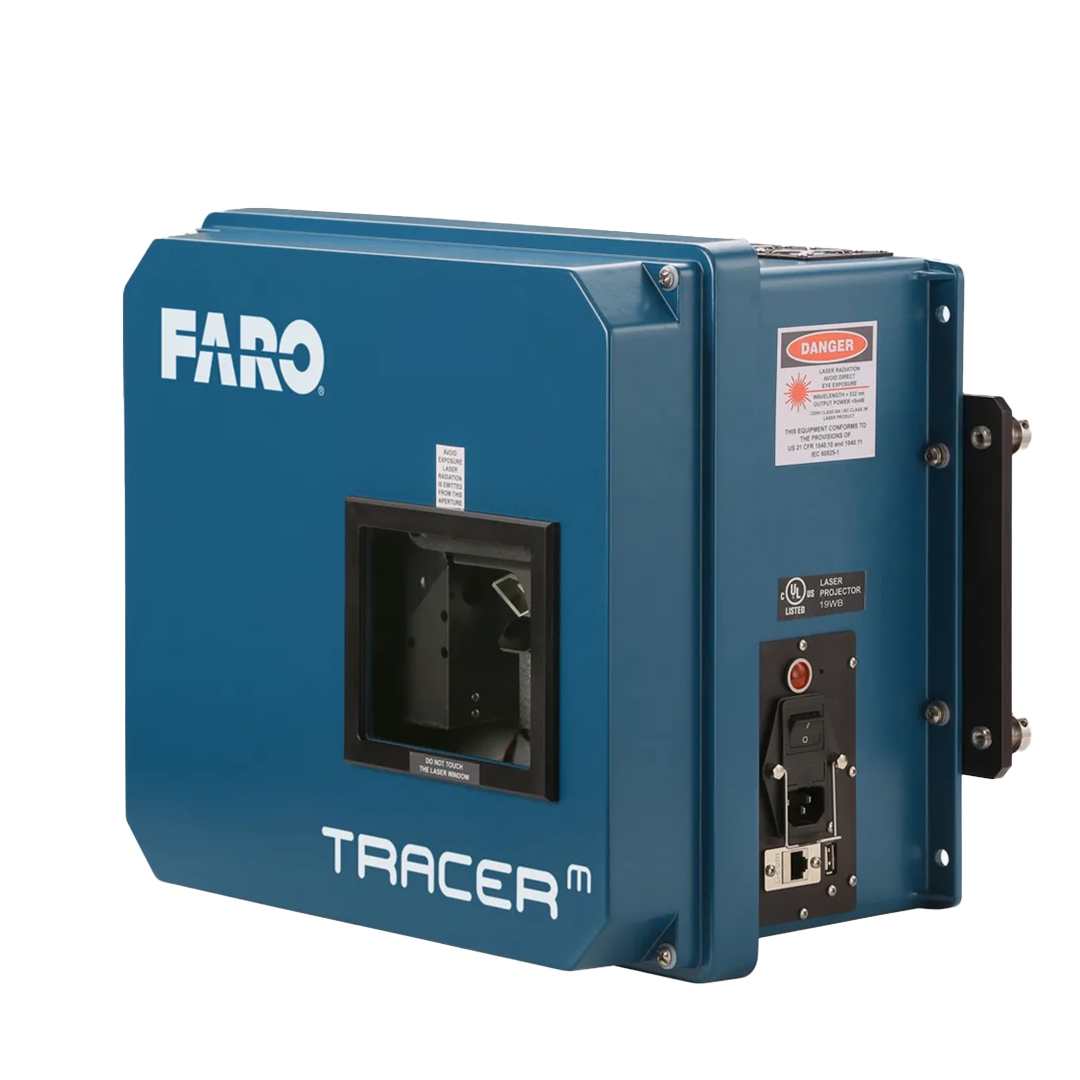

TracerM Laser Projector
Tailored to assist operators and assemblers, it effortlessly guides the placement of components with absolute confidence. Experience the convenience of a virtual template, ensuring accuracy and efficiency every time.
Experience the perfect blend of innovation, convenience, and affordability today.
FARO Tracer Laser Projectors
Experience the power of automation and precision with our Laser Projectors and BuildIT Projector Software. Our new ScanAlign feature allows you to effortlessly align retro-targets, saving you time and streamlining your workflow.
The advanced IPV technology scans your assembled components, ensuring they are properly positioned and conforming to your specifications. Say goodbye to costly errors and hello to immediate identification and resolution of non-conforming parts.
Tracer Laser Projector Features Features
Exceptional Accuracy & Long-range Projection
Experience precise projections with an accuracy of 0.25 mm (0.010 in.) at a distance of 4.6 m (15 ft.). Our cutting-edge technology allows for accurate, variable, and long-range projections up to 15.2 m.
Feature-based (Targetless) Alignment
Save time and effort with this convenient alignment method that eliminates the need for checkerboard targets. Instead, compare known features of an object directly to the CAD model.
Advanced Trajectory Control (ATC)
The ultimate solution for achieving fast projection, superior dynamic accuracy, and rapid refresh rates with minimal flicker.
3D CAD-based Virtual Templating
Discover the power of 3D CAD-based virtual templating for your manufacturing, construction and prefabrication projects. Achieve precision and efficiency like never before.
Automate your Workflow
Automate your workflow with Tracer Laser Projectors and our industry-leading BuildIT Construction Software. Streamline your processes and increase productivity with the power of BuildIT Projector Software.
Quality Assurance with In-process Verification
Ensure the quality of work at crucial assembly stages with regular verification. Detect and eliminate Foreign Objects and Debris (FOD) for superior quality assurance.
Multi-projector Array
The perfect solution for large assemblies and space-constrained areas. Now you can effortlessly operate multiple laser projectors from just one workstation.
Durability & Dependability
Our innovative device features a dust-sealed industrial enclosure and active thermal management for optimal performance and protection.
AEC and Metrology Applications
Boost Efficiency and Precision with Tracer Laser Projectors
Tracer Laser Projectors are your ultimate solution for assembly guidance and positioning needs. Whether in high-volume production or specialised industries like aerospace, defence, automotive, and heavy equipment, our technology guarantees fast and accurate results.
With Tracer Laser Projectors, you can achieve precise composite part layup, seamless system bracket placement, flawless rib and stringer positioning, and even create paint templates effortlessly. Our technology also excels in precision placement, weld location identification, production line optimisation, efficient robot station layouts, and precision table applications.
Discover the countless applications our Tracer Laser Projectors can enhance in the realm of production, fabrication, and assembly. Improve efficiency, eliminate errors, and experience the reliability of our cutting-edge technology. Explore all potential applications today!
Streamline Construction Prefabrication with Precision
Accelerate your welding, assembly, and fixturing processes in your prefab factory or modular construction facility by projecting CAD models directly onto workstations or jigs. Our Tracer Laser Projectors are designed to assist you in building structural systems, modular frames, floor and wall panels, and installing MEP systems in modular units. With our technology, you can easily ensure that all components are accurately placed. Discover the endless possibilities of construction prefabrication.
Quality Control and Inspection with Real-Time Deviation Detection
Discover the power of Tracer Laser Projectors for industrial automation quality control. In-process verification at every step of the process ensures immediate detection of any deviations. Explore our range of quality control and inspection applications for seamless operations.
Performance Specifications
| TracerSI Specifications | |||||||||||
| Performance | |||||||||||
| Positional Accuracy | 0.25 mm @ 5 m (0.010 in @ 16.4 ft) | ||||||||||
| Range - Projection | 1.8 to 15.2 m (6 to 50 ft) | ||||||||||
| Range - IPV | 1.8 to 15.2 m (6 to 50 ft) | ||||||||||
| Range - Feature Detection | 1.8 to 15.2 m (6 to 50 ft) | ||||||||||
| Projection Angle | 60° Az x 60° El | ||||||||||
| Focused Line Width (1/e2) | 0.5 mm (0.02 in) | ||||||||||
| Inspection Scanning Speed | 5,000 to 50,000 pixels/sec | ||||||||||
| Beam Steering Speed | 130 rad/sec | ||||||||||
| Projection Volume | 900 m3 (32,000 ft3) | ||||||||||
| Focus Type | Advanced Autofocus Feature | ||||||||||
| Multitasking Capabilities | Multiple simultaneous projection images | ||||||||||
| Multi-Projector Array | Multiple TracerSI projectors can be controlled from a single computer | ||||||||||
| Hardware Specifications and Environmental | |||||||||||
| Power Input | 120/240 VAC 3.0/1.5A 50/60 HZ | ||||||||||
| Operational Temperature Range | 10 - 35°C (50 - 95°F) | ||||||||||
| Connectivity | Ethernet LAN CAT 6 Shielded 100Base-T | ||||||||||
| Projector Size | L 445 mm x W 239 mm x H 338 mm (L 17.5 in x W 9.4 in x H 13.3 in) | ||||||||||
| Projector Weight | 17.24 kg (38 lbs.) | ||||||||||
| Laser Classification | |||||||||||
| Laser Class | Two Models: CDRH IIIa, Class 3R (<5 mW)a CDRH II, Class 2 (<1 mW)a Complies with IEC 60825-1:2014 |
||||||||||
| Projection Laser Wavelength | 532 nm, Green visible | ||||||||||
| Compliance and Certifications | |||||||||||
| Electrical Safety | IEC/EN 61010-1 | ||||||||||
| EMI/EMC Specification | FCC Part 15.101, Subpart B EU/EMC Directive 2014/30/EU EN 61000-6-2, EN 61000-6-4 IEC/EN 61326-1 EN 301 489 ETSI ICES-003 |
||||||||||
| Environmental | 2011/65/EU, RoHS2 1907/2006/EC REACH 2002/96/EC - WEEE |
||||||||||
| Marking Label | UL CE | ||||||||||
| TracerM Specifications | |||||||||||
| Performance | |||||||||||
| Projection Range | 1.8 to 15.2 m (6 to 50 ft) | ||||||||||
| Angular Field of View | 60° Az x 60° El | ||||||||||
| Focused Line Width | 0.5 mm (0.02 in) | ||||||||||
| Positional Accuracy | ± 0.25 mm @ 4.6 m (± 0.010 in @ 15 ft) |
||||||||||
| Hardware Specifications and Environmental | |||||||||||
| Power Input | 100/240 VAC 50/60 Hz | ||||||||||
| Ambient Temperature Range | 10 - 35°C (50 - 95°F) | ||||||||||
| Connectivity | Ethernet LAN CAT 6 Shielded 100Base-T | ||||||||||
| Laser Emission | 532 nm Laser, 5 milliWatt max/ CW, Class 3R Laser Producta | ||||||||||
| Certifications | EU - RoHS UL listed |
||||||||||
| Complies With | EU/EMC Directive 2014/30/EU Laser Safety IEC 60825-1: 2014a EN 61010-1:2001/CSA-C22.2 No 61010-1 EN 61326-1:2006 EN 301 489 FCC Part 15, Subpart B, Class A ICES-003 2011/65/EU-RoHS |
||||||||||
| Dimensions | |||||||||||
| Projector Size | L 445 mm x W 239 mm x H 338 mm (L 17.5 in x W 9.4 in x H 13.3 in) | ||||||||||
| Projector Weight | 17.24 kg (38 lbs.) | ||||||||||
