The Next Generation
ScanArm

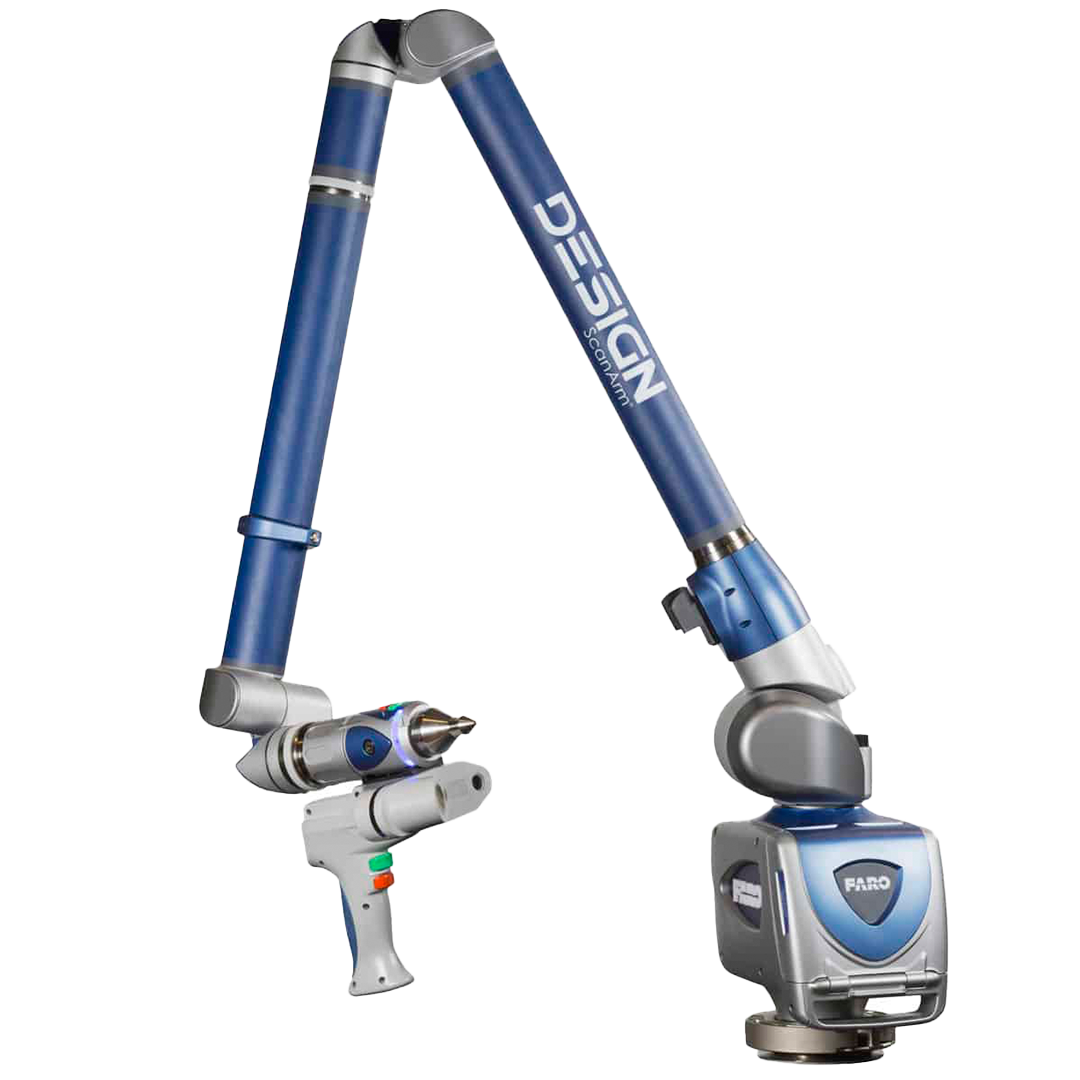

Quantum Max ScanArms
Experience the Power of Precision with FARO Quantum Max ScanArms
Productivity
Experience maximum productivity with the Quantum Max's extended arm reach and redesigned end effector, equipped with dual kinematic laser line mounts (LLP's) and multiple hot-swappable LLP's. Our advanced technology delivers the fastest and most detailed scanning capabilities on the market, enabling you to complete projects faster than ever before while optimizing overall productivity.
Versatility
With dual kinematic seats, you can effortlessly switch between hard probe and LLP interchangeable mounting positions. Say goodbye to recalibration! Easily move the LLP from top to front mount, granting you greater access to tight spaces and hard-to-reach areas, plus the quick-release handle provides dynamic holding options. Discover the ultimate solution for all your needs with Quantum Max.
Performance
With working volumes ranging from 2.0m to 4.0m, you can choose the size that suits your needs. Experience improved rigidity and stability, resulting in optimised accuracy and repeatability for superior performance. Our FaroArms are built to withstand even the toughest factory environments. Introducing our latest addition, the 2.0m working volume arm, which offers unparalleled accuracy in its size category.
Unleash the Full Potential of the Quantum Max ScanArm
Business Value of ScanArms
Accurate Data
Enhance your data collection process by capturing precise details with the state-of-the-art FARO Laser ScanArm. Say goodbye to guesswork as it effortlessly captures intricate measurements of even the most complex parts and objects.
Streamline Operations
Precision measurement significantly minimises scrap, rework, and inspection bottlenecks, leading to higher production rates and less downtime spent on verifications, ultimately resulting in maximum throughput.
Speed, Accuracy & Efficiency
Elevate your productivity by finding the perfect balance between speed and accuracy. With our cutting-edge scanning technology, every operator can achieve consistent and repeatable results, without any compromises.
Enhanced Quality, Precise Details
Our advanced 3D inspections and automated reports precisely identify defects, thanks to the cutting-edge FARO laser ScanArm. Experience unparalleled measurement detail for intricate components and objects.
Accelerate Revenue Generation
You will accelerate product launches, minimize rework, and decrease downtime, resulting in enhanced efficiency and productivity.
Keep Customers and End Users Happy
Providing superior quality products that instil confidence in users is a key driver for customer satisfaction and loyalty.
Make Informed Decisions
Armed with the information readily available to your team, they will be empowered to make well-informed decisions swiftly and proactively tackle any challenges, ensuring they stay ahead of the game.
ScanArms By Performance Level
Maximum Performance
Maximum Reach
FAROBLU XR
Maximum Accuracy
The perfect tool for precise tasks that require tight tolerances. With its high accuracy and exceptional resolution, this device allows users to effortlessly scan small intricate parts and capture fine details. Experience 1.5 times greater accuracy and elevate your production quality with reliable data.
FAROBLU XP
Maximum Productivity
Elevate your productivity by finding the perfect balance between speed and accuracy. This LLP is the perfect tool for scanning with precision, speed, and comprehensive coverage. Enhance your profitability and throughput with its versatile performance, ideal for any application.
FAROBLU XS
Maximum Speed
Experience maximum speed with this LLP designed for large parts and expansive surface areas. With its extra-wide laser stripe, you can collect data up to 2.6 times faster than the xR and 1.6 times faster than the xP in just one pass. Say goodbye to time-consuming multiple passes and hello to faster results and increased productivity.
FAROBLU XE
Maximum Efficiency
Take advantage of our entry-level LLP options and experience the power of simple yet effective design. Perfect for reverse engineering and other lower-accuracy applications, this device is the ideal choice for businesses seeking to boost production yield, cut down on scrap cost, and increase profitability.
ScanArm Features
Multiple Working Volumes
Satisfy the requirements of any application with working volumes of 2.5m, 3m, 3.5m, and 4m.
Application-built LLP's
Achieve unmatched speed, exceptional accuracy, or a perfect blend of both. Our hot-swappable and purpose-built LLPs make it all possible.
Continuous Light Rectification
Discover the power of CLR Technology - the ultimate solution for scanning dark, reflective, or translucent surfaces.
Ergonomic Design
Effortlessly transport, set up, and operate FaroArms with ease and comfort.

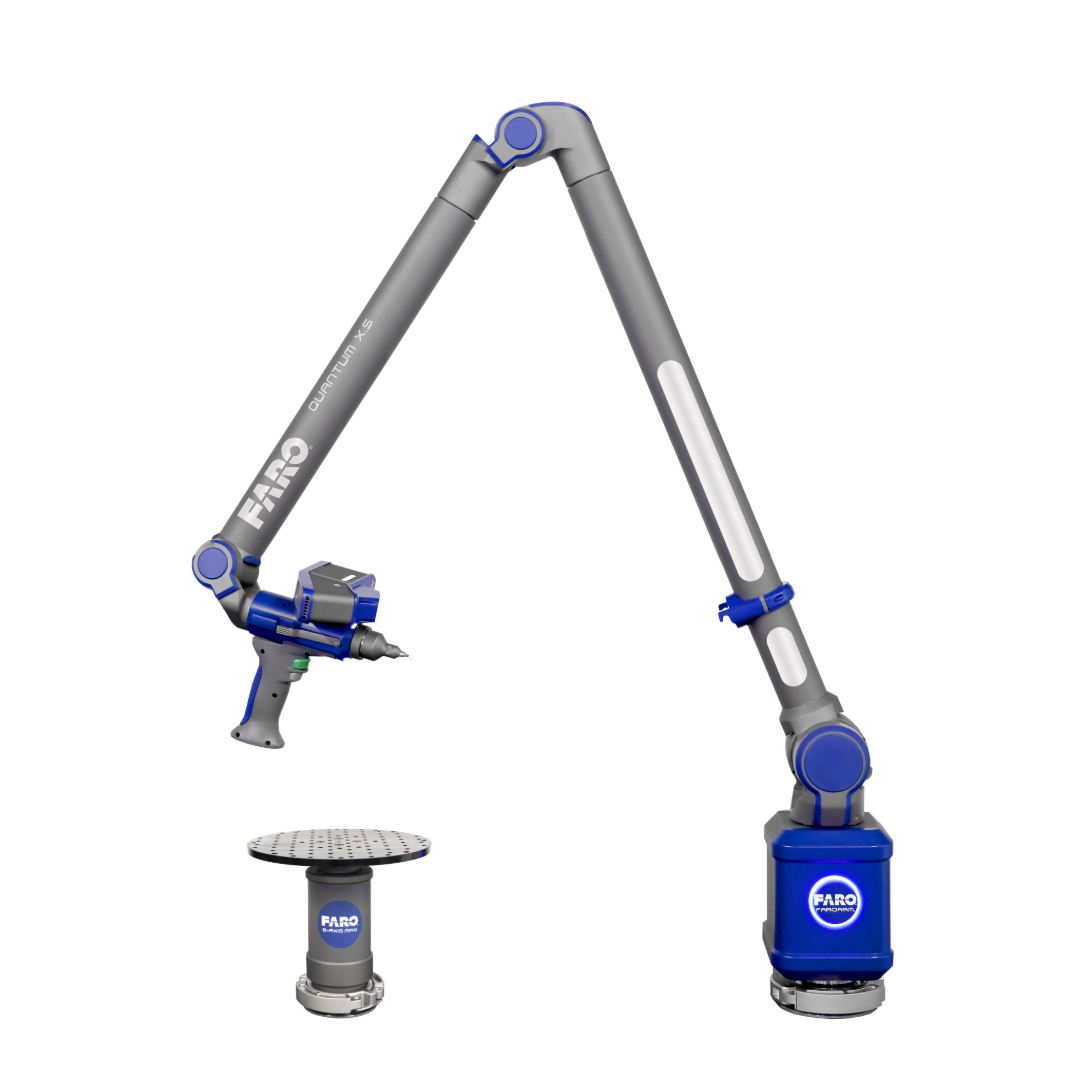

Exclusive FARO Quantum Max 8-axis Integration
Effortlessly measure all dimensions of a component without the need for repositioning.
Compliance
Meet the rigorous ISO 10360-12 performance standards with ease.
Universal Quick Mount
Set up a FaroArm wherever it is required for seamless operations.
Temperature and Overload Sensors
Guarantee uninterrupted, optimal performance.
Powerful Software Solutions
Effortlessly integrate FaroArms and software for seamless compatibility and streamlined operations.
Extended Battery Use Option
Experience cable-free operation for maximum convenience and flexibility.
High-speed Wireless Operation
Easily connect using Bluetooth or Wi-Fi for seamless connectivity.
Rugged Design
Utilise FaroArms in even the most demanding measurement environments, ensuring accurate and precise results.
3D Metrology Applications
Improved Quality Control and Inspection
Ensure precise dimensions and spot any discrepancies from the original CAD design when conducting initial and ongoing quality checks. This includes examining incoming parts and assessing progress throughout the manufacturing process..
Production, Fabrication and Assembly
Maintain optimal performance by regularly calibrating and aligning production machinery. Ensure precise dimensions of tooling and parts with thorough accuracy verification.
Faster, More Accurate Product Design and Engineering
Accelerate your product development with fast reverse engineering and rapid prototyping, reducing time-to-market.
ScanArm System Accuracy - Non-Contact Measurement**
|
QuantumS Max |
||||
| FAROBlu Max | xR | xP | xS | xE |
| 2.0m (6.6ft) | 0.03mm 0.0012in |
0.038mm 0.0015in |
0.046mm 0.0018in |
0.042mm 0.0017in |
| 2.5m (8.2ft) | 0.034mm 0.0013in |
0.042mm 0.0017in |
0.05mm 0.002in |
0.044mm 0.0017in |
| 3.0m (9.8ft) | 0.04mm 0.0016in |
0.048mm 0.0019in |
0.055mm 0.0022in |
0.057mm 0.0022in |
| 3.5m (11.5ft) | 0.054mm 0.0021in |
0.061mm 0.0024in |
0.068mm 0.0027in |
0.070mm 0.0028in |
| 4.0m (13.1ft) | 0.068mm 0.0027in |
0.074mm 0.0029in |
0.08mm 0.0031in |
0.082mm 0.0032in |
|
QuantumM Max |
||||
| FAROBlu Max | xR | xP | xS | xE |
| 2.0m (6.6ft) | 0.035mm 0.0014in |
0.041mm 0.0016in |
0.052mm 0.002in |
0.043mm 0.0017in |
| 2.5m (8.2ft) | 0.039mm 0.0015in |
0.046mm 0.0018in |
0.056mm 0.0022in |
0.048mm 0.0019in |
| 3.0m (9.8ft) | 0.046mm 0.0018in |
0.053mm 0.0021in |
0.062mm 0.0024in |
0.065mm 0.0026in |
| 3.5m (11.5ft) | 0.062mm 0.0024in |
0.067mm 0.0026in |
0.076mm 0.003in |
0.080mm 0.0031in |
| 4.0m (13.1ft) | 0.078mm 0.0031in |
0.081mm 0.0032in |
0.09mm 0.0035in |
0.090mm 0.0035in |
|
QuantumE Max |
||||
| FAROBlu Max | xR | xP | xS | xE |
| 2.0m (6.6ft) | 0.042mm 0.0017in |
0.053mm 0.0021in |
0.06mm 0.0024in |
0.060mm 0.0024in |
| 2.5m (8.2ft) | 0.048mm 0.0019in |
0.059mm 0.0023in |
0.065mm 0.0026in |
0.066mm 0.0026in |
| 3.0m (9.8ft) | 0.056mm 0.0022in |
0.067mm 0.0026in |
0.077mm 0.003in |
0.089mm 0.0035in |
| 3.5m (11.5ft) | 0.076mm 0.003in |
0.085mm 0.0033in |
0.095mm 0.0037in |
0.101mm 0.0040in |
| 4.0m (13.1ft) | 0.095mm 0.0037in |
0.104mm 0.0041in |
0.112mm 0.0044in |
0.120mm 0.0047in |
FaroArm Accuracy - 7-Axis Contact Measurement*
|
QuantumS Max |
|||||
| 7-Axis | SPAT1 | PSIZE2 | PFORM3 | LDIA4 | EUNI5 |
| 2.0m (6.6ft) | 0.018mm 0.0007in |
0.01mm 0.0004in |
0.02mm 0.0008in |
0.04mm 0.0016in |
0.025mm 0.001in |
| 2.5m (8.2ft) | 0.02mm 0.0008in |
0.011mm 0.0004in |
0.022mm 0.0009in |
0.044mm 0.0017in |
0.028mm 0.0011in |
| 3.0m (9.8ft) | 0.032mm 0.0013in |
0.016mm 0.0006in |
0.032mm 0.0013in |
0.074mm 0.0029in |
0.05mm 0.002in |
| 3.5m (11.5ft) | 0.045mm 0.0018in |
0.02mm 0.0008in |
0.039mm 0.0015in |
0.09mm 0.0035in |
0.062mm 0.0024in |
| 4.0m (13.1ft) | 0.055mm 0.0022in |
0.026mm 0.001in |
0.044mm 0.0017in |
0.108mm 0.0043in |
0.076mm 0.003in |
|
QuantumM Max |
|||||
| 7-Axis | SPAT1 | PSIZE2 | PFORM3 | LDIA4 | EUNI5 |
| 2.0m (6.6ft) | 0.023mm 0.0009in |
0.012mm 0.0005in |
0.024mm 0.0009in |
0.045mm 0.0018in |
0.029mm 0.0011in |
| 2.5m (8.2ft) | 0.027mm 0.0011in |
0.013mm 0.0005in |
0.026mm 0.001in |
0.049mm 0.0019in |
0.032mm 0.0013in |
| 3.0m (9.8ft) | 0.042mm 0.0017in |
0.02mm 0.0008in |
0.036mm 0.0014in |
0.08mm 0.0031in |
0.054mm 0.0021in |
| 3.5m (11.5ft) | 0.055mm 0.0022in |
0.024mm 0.0009in |
0.043mm 0.0017in |
0.096mm 0.0038in |
0.066mm 0.0026in |
| 4.0m (13.1ft) | 0.065mm 0.0026in |
0.029mm 0.0011in |
0.048mm 0.0019in |
0.118mm 0.0046in |
0.082mm 0.0032in |
|
QuantumE Max |
|||||
| 7-Axis | SPAT1 | PSIZE2 | PFORM3 | LDIA4 | EUNI5 |
| 2.0m (6.6ft) | 0.028mm 0.0011in |
0.016mm 0.0006in |
0.035mm 0.0014in |
0.05mm 0.002in |
0.04mm 0.0016in |
| 2.5m (8.2ft) | 0.035mm 0.0014in |
0.02mm 0.0008in |
0.04mm 0.0016in |
0.055mm 0.0022in |
0.046mm 0.0018in |
| 3.0m (9.8ft) | 0.055mm 0.0022in |
0.028mm 0.0011in |
0.051mm 0.002in |
0.088mm 0.0035in |
0.066mm 0.0026in |
| 3.5m (11.5ft) | 0.075mm 0.003in |
0.036mm 0.0014in |
0.062mm 0.0024in |
0.11mm 0.0043in |
0.082mm 0.0032in |
| 4.0m (13.1ft) | 0.095mm 0.0037in |
0.044mm 0.0017in |
0.075mm 0.003in |
0.136mm 0.0054in |
0.1mm 0.0039in |
All values represent MPE (Maximum Permissible Error)
* Contact Measurement (FaroArm) : In Accordance with ISO 10360-12. With optional 8-Axis (FaroArm + 8-Axis) full system performance based on ISO10360-12 Sphere Location Diameter Error (LDIA)
** Non-Contact Measurement (ScanArm and ScanArm + 8-Axis): Based on ISO 10360-8 Annex D; defined as LDIA (Sphere Location Diameter Error) - Diameter of the spherical zone containing the centers of a sphere measure from multiple orientations. Values are absolute
- SPAT – Single Point Articulation Test
- EUNI – Distance Error between two points comparing measured versus nominal values
- PSIZE – Sphere Probing Size Error comparing measured versus nominal values
- PFORM – Sphere Probing Form Error
- LDIA – Sphere Location Diameter Error (Diameter of the spherical zone containing the centers of a sphere measured from multiple orientations)
